Technical
Overall

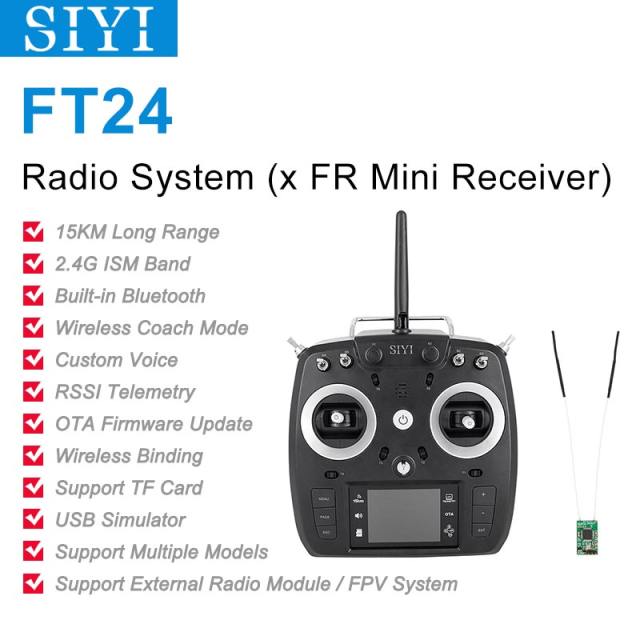

Model: FT24
Frequency Band: 2400 to 2483 MHz
Control Range: 15 Kilometers / 9.3 Miles (unobstructed, free of interference)
Channels: 12 physical channels, 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics
Transmitter
Monitor: 2.8-inch LCD Screen
Language Display: Chinese / English
Dimensions (antenna folded): 191 x 175 x 64 mm
Weight: 586 g
Compatible Battery Type:
- 2 x 18650 Li-ion (battery life 22 hours)
or
- 1 x 2S LiPo Battery (XH 2.54 3-Pin Port)
Working Temperature: 0 to 55℃
FR Receiver
Signal Output: 16 channels of S.BUS, 8 channels of PPM, 8 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 51.5 x 38 x 13 mm
Weight (antenna excluded): 20 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 to 8.4 V
Voltage Telemetry Range: 0 ~ 50 V
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃
